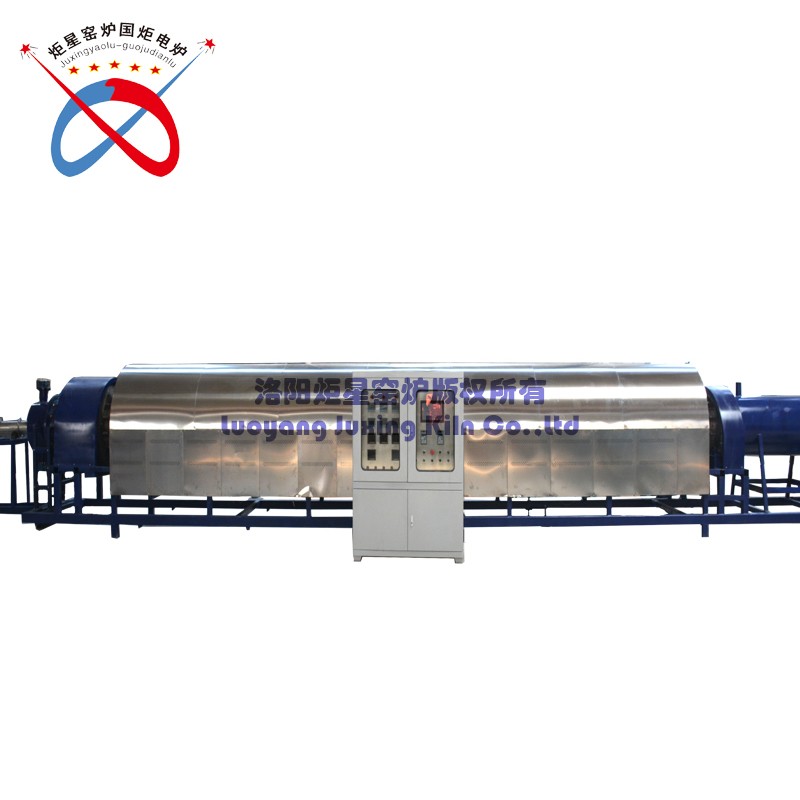

Energy Saving Environmental Protection Electric Rotary Kiln-With Touch Screen Control System(GWL-RK)

Author: Publish Date:2018-03-26 Views:110

Model

GWL-RK

Working Temperature

1200

Maximum Temperature

1250

Voltage

380V

Furnace Hearth Dimension

Inside Diameter( 300mm)×Length( 8000mm)Length Of Heating Zone 5 Meter

Power Rating

150KW (Automatic adjustment)

Rotational Speed

5-15r/min (Adjustable)

Furnace Hearth Inclines Angle

1-5°(Adjustable)

Materials Transmission Machine

Length 1.5 Meter

Land Occupation

10Meter(Length)*2Meter(Width)

Furnace Hearth Materials

2520 Steel (310S Stainless Steel) And Vacuum Forming High   Purity Alumina Light Material

Heating Element

Silicon Carbide Rod or Electric Resistance Wire

Temperature Control Accuracy

≤±1

Temperature Rise Rate

Temperature Rise Rate Can Be Modify(30℃/min | 1℃/h), Company   Suggest: 1-20℃/min

Standard Accessories

Heating Elements, Specification Certificate, Heat   Insulation Brick, Crucible Pliers, High Temperature Gloves.

Characteristic

Excellent temperature uniformity, Guaranteed the product quality, Fast   temperature rise rate, high heat utilization rate;

1.      The roller kiln basically does not   have the upper and lower temperature difference, and the heat transfer rate   is high, which ensures the rapid firing.

2.      Less heat consumption, wildly using   the new model light refractories, canceled the kiln trolley   and saggar and so on heat consumption equipment

3.      Furnace has the excellent sealed   level, which improved the heat utilization rate.

4.      Excellent automation and mechanization,   High rate of finished products.

5.      Less land occupationSimple structure, Fast   construction rate, High economic benefit.

6.      Less human force and Improving the   working environment.

Furnace Hearth Dimension Can Be   Customized, More Details Please Contact Us

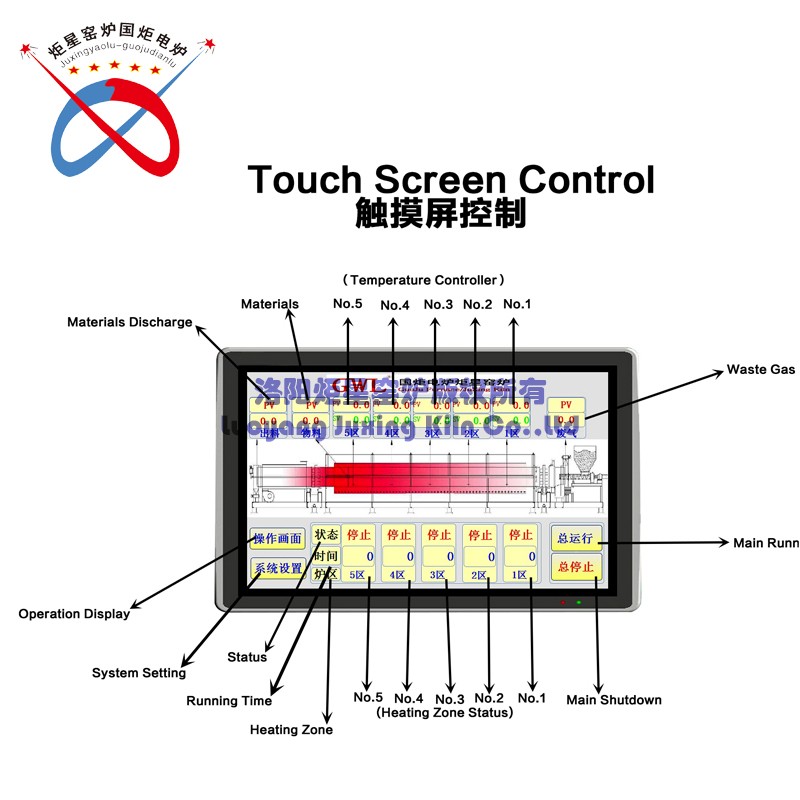

Touch screen control

Screen Dimension

7inch; 10inch; 14inch TFT True Color

Appearance Dimension

206W*156H*50D(mm) 280W*200H*50D(mm)

Display Resolution

800*480

Background Light

LED

Power Rating

5W

Weight

1KG

Operation Language

Chinese/English (Switch freely)

Screen Display And Operation

Dashboard, Photo Column, Historical   Trend, Data Report, Alarm Information, Data Export, Process Flow, System   Management, etc.

Control Objective

Temperature, Pressure, Flux   And Liquid Level and so on

Temperature Control

Touch Screen & High Precision Integrated   Module

Start Temperature Rise

Touch operation

Pause Temperature Rise

Stop Temperature Rise

Loading Platform Passed In And Out

Loading Platform Raise And Fall

StartPauseStopProgram

Flow Chart

Base on furnace structure or process   flow

Temperature Curve Formulation

Touch to operation, 30 segments   of each curve

Storage Quantity Of Temperature Curve

Unlimitedeach curve can be named in   English or Chinese

Real-time Display

Name of operation curve, Operation   Code, Segment time, Segment running timedigital temperaturereal-time curvepower output 100%

Selection Segment No. To Start Segment   (Cross Segment Start)

Touch to Operation

Curve range

Can Be Modify

Curve Record

Storage Around 20 Month

Data ReportEXCEL

Multipoint simultaneous displayUSB Extension Support

History curve, Report record (save)   time interval

1s-3600s Can be modify, Multi point   simultaneous display

(Usb Extension Support)

Alarm Instructions

Color Change(Red)

Alarm Information Language

Chinese Display (Alarm Description and   time)

Data Output Port

USB

Printer Interface

Parallel Port

Touch Screen Safety Protection

Password Control (Without password   cannot doing operation)

Communication Interface

RS485
